Description

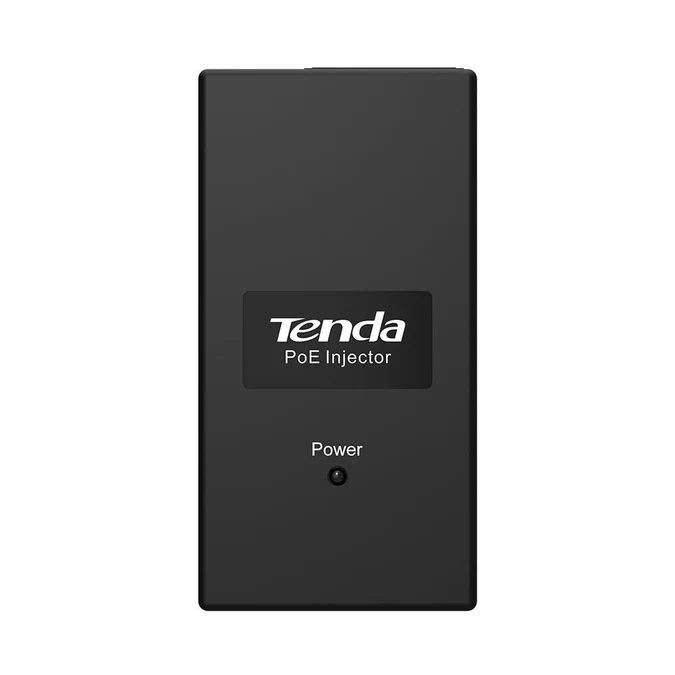

Tenda POE15F PoE Adapter Fast Ethernet 48 V
The PoE injector PoE15F can realize synchronous delivery of device network data and power via one Ethernet cable. The output power of per port is up to 15W, which can serve as an outlet for a PoE device. You can connect PoE15F to an IEEE 802.3af compliant PD, such as wireless AP, IP camera, IP phone, etc. In a sense, it is a good choice for you to reduce the installation cost and improve the network perfor. – Delivers power and data through one Ethernet cable for easy network extension; – Compatible with IEEE 802.3af compliant powered devices; – PoE Port Delivers power up to 100 meters; – Plug and Play, no configuration required.
Power Over Ethernet
One PoE port to power connected devices for flexible network deployment.
IEEE 802.3af compliant
Compatible with IEEE 802.3af compliant powered devices.
Extend Power Supply
Distance of power transmission via Ethernet cable is up to 100 meters.
Plug and Play
Hassle-free setup, no configuration required.
Specification
Network standards
IEEE802.3รฃโฌยIEEE802.3u
LED Indicator
Link/Act , PoE Status
Interfaces
1*10/100 Base-TX Ethernet ports(Data/PoE)
1*10/100 Base-TX Ethernet ports(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
84.5mm*44mm*29.8 mm
Level of protection
ESD:
Air discharge: ยฑ10kV
Contact discharge: ยฑ8kV
Forwarding mode
Store-and-forward
Transmission Rate
100Mbps
PoE budget
Single port: AF: 15.4W
Whole device: 15W
Power consumption
15W
Input voltage
100รฏยผย240V AC 50/60Hz
48V/0.3A DCรฏยผหPower Adapter Outputรฏยผโฐ
Mounting
Desktop mounting: support
Environment
Operating Temperature: 0รขโฦ~45รขโฦ
Storage Temperature: -40รขโฦ~70รขโฦ
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
