DeepCool CG580 4F WH V2 Mid Tower Case | 4 ARGB Fans, 360mm Support

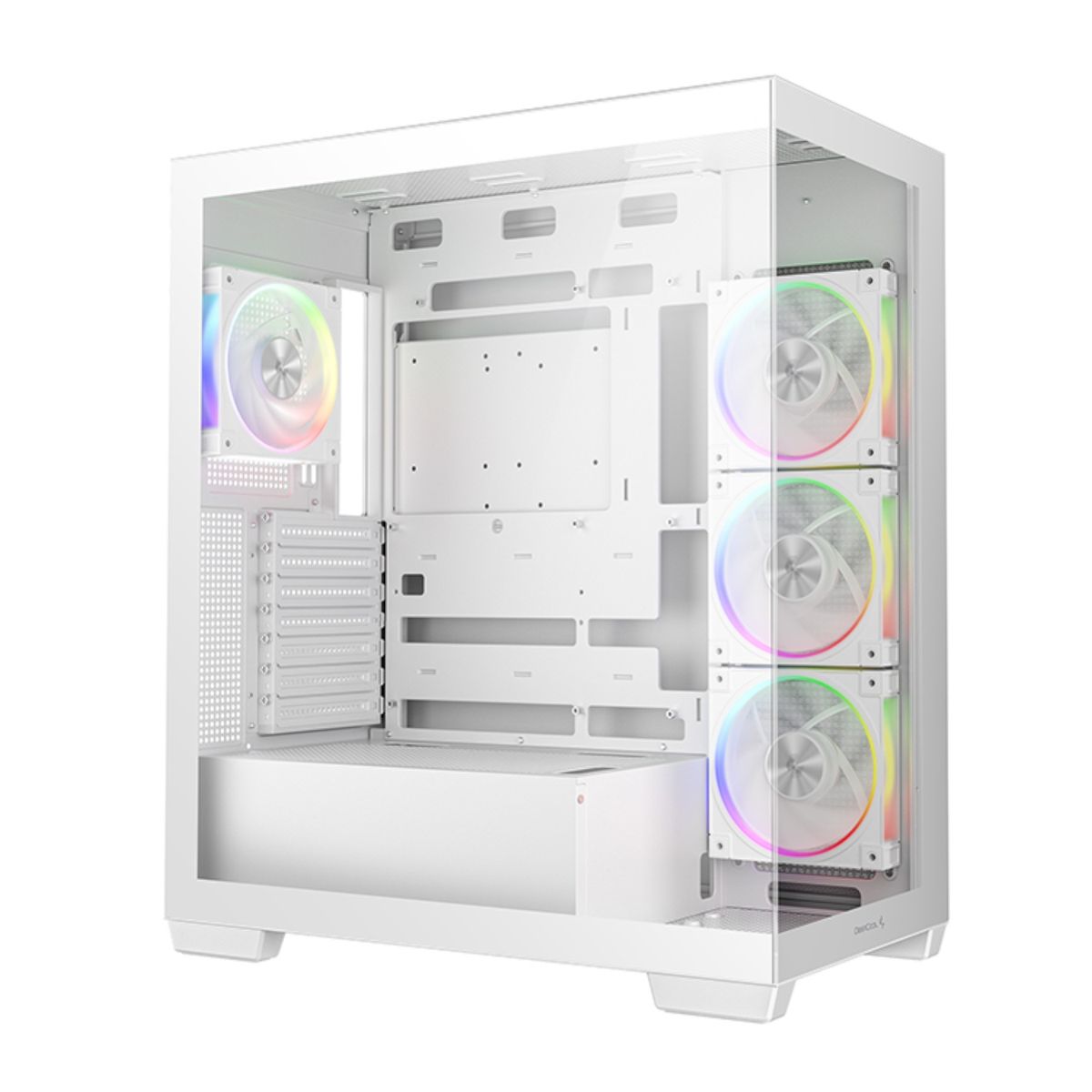

Unobstructed Scenic Internal View
By removing the A-pillar between the front and side tempered glass panels, this design ensures a completely open and seamless view of your build. The layout appears cleaner and more refined, especially with motherboard trays that support ASUS and MSI boards featuring rear connectors, helping keep cable clutter hidden from the main showcase area.
Pre-Installed Cooling With Unified ARGB Lighting
The CG580 4F V2 WH arrives equipped with a complete cooling solution, including three PWM ARGB reverse-flow fans mounted on the side and a standard PWM ARGB fan at the rear. This setup establishes smooth directional airflow for improved thermal performance. The synchronized ARGB lighting across fan frames and rings supports motherboard control, allowing dynamic and cohesive lighting effects throughout your system.
LED Control and Sync Operation Guide
The built-in LED button offers simple control over lighting modes, letting you toggle through 16 preset effects with a quick tap. When connected to the motherboardโs sync cable, holding the button for two to three seconds activates synchronization mode, handing control of lighting effects to your motherboard. During sync mode, another two-second long press switches control back to the caseโs internal lighting board.
Flexible Hardware Compatibility and Expansion Support
The CG580 4F V2 WH is built to handle a broad range of components, offering support for a 210mm power supply and a 410mm graphics card. When a side-mounted vertically oriented radiator is installed, GPU clearance becomes 262mm. The chassis works with ATX motherboards and includes seven expansion slots, two 3.5-inch bays, and two 2.5-inch bays, providing generous room for system expansion and storage customization.
Versatile Radiator and Fan Cooling Options
Engineered for high-performance cooling, the CG580 4F V2 WH accommodates a variety of radiator sizes, including up to 360mm units on both the top and side along with 140mm support at the rear. Fan mounting configurations include 3ร120mm or 2ร140mm on top, 3ร120mm along the side, and one 120mm or 140mm fan at the rear. The bottom section can host either a 3.5-inch hard drive or a 120mm fan, while the PSU shroud supports two additional 120mm fans. With CPU cooler clearance up to 176mm, the case is designed to maintain strong thermal performance under demanding conditions.
User-Friendly Connectivity and Dust Protection
The CG580 4F V2 WH enhances everyday usability with convenient access to two USB 3.0 ports, a Type-C port, and a hybrid audio jack located on the top I/O panel. Cable routing is simplified thanks to a 33mm backplane that helps maintain a neat internal layout. Magnetic dust filters on the top, bottom, and side panels help block debris and make routine cleaning quicker and more efficient.
